Module US-3205 - 19036709.19V

Name: Module US-3205 - 19036709.19V
SKU: 19036709.19V
Price: 1876.00 USD
Availability: InStock

Frame
1 x 41 5/8W x 44 1/2H frame
1 x 19 5/8W x 44 1/2H frame
1 x fixing pack with van specific brackets

LH Accessories (top to bottom)
4 x 20 7/8W case holder shelf
1 x 20 7/8W x 5 3/8D shelf with mat
1 x 44 1/2H frame full internal upright
1 x Systainer³ Organizer M 89-22
1 x Systainer³ M187
1 x 16 1/2W x 13 1/4D shelf with mat
1 x 5 1/8W x 11 3/4D bottBox kit (3 boxes)
1 x 16 1/2W x 5 3/8D shelf with mat

RH Accessories (top to bottom)
1 x Systainer³ Organizer M 89-22
1 x Systainer³ M187
1 x 16 1/2W x 13 1/4D shelf with mat
1 x 5 1/8W x 11 3/4D bottBox kit (3 boxes)
1 x 16 1/2W x 5 3/8D shelf with mat

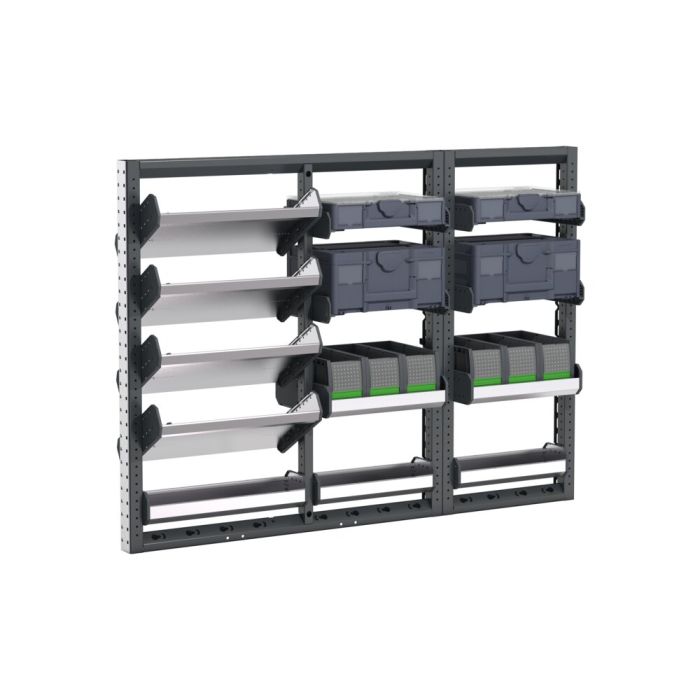

Van Shelving Module US-3205 fits on the right-hand side to the existing fixing points in the van. Accessories can be adjusted within the metal frames, providing you with the flexibility to create a more efficient space as your work and tools evolve over time.

SKU: 19036709.19V

DETAILS
DOES IT FIT?
SPECS
NEED HELP?

Product Details

Compatability

Vehicle	Position	SKU
Chevrolet Express (2000 - present) Cargo Van Extended 155" wheelbase, standard roof, single sliding door	Right Hand Rear	y73-che-2-l3h0-31-sdr
GMC Savana (2000 - present) Cargo Van Extended 155" wheelbase, standard roof, single sliding door	Right Hand Rear	y73-gmc-2-l3h0-31-sdr

Specifications & Dimensions

Weight (kg)

46.21

Width (INCH)

61 1/4

Depth (INCH)

13 1/4

Height (INCH)

44 1/2

Weight (LB)

102

Load capacity (LB)

276

Height [mm]

1130

Width [mm]

1556

Depth [mm]

337

Max. load [kg]

125
