Module US-9100LH frame kit1 - 19035209.19V

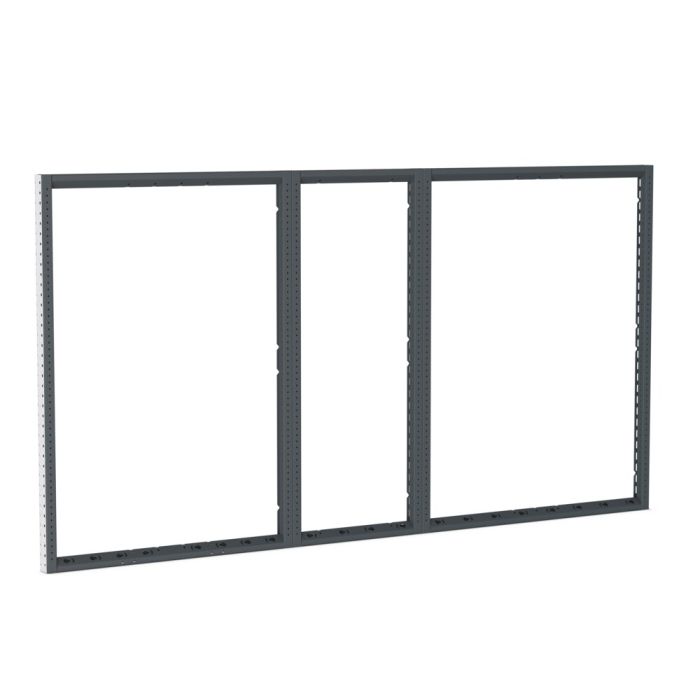

Frame
1 x 46 1/8W x 59 1/4H frame
1 x 24 1/8W x 59 1/4H frame
1 x 41 5/8W x 59 1/4H frame
1 x fixing pack with van specific brackets

LH frame fits for 38 1/2W accessories
Middle frame fits for 20 7/8W accessories
RH frame fits for 42 7/8W accessories

SKU: 19035209.19V

DETAILS
SPECS
NEED HELP?

Product Details

Specifications & Dimensions

Weight (kg)

53.47

Product material

Sheet steel

Main RAL color

RAL 7016

Width (INCH)

111 3/4

Depth (INCH)

2 3/4

Height (INCH)

59 1/4

Weight (LB)

Height [mm]

Width [mm]

Depth [mm]
